Automatic connecting and unloading rod system, realize single person simple operation;
Aluminum alloy advance beam, lightweight design, drilling more efficient, stable;
Imported electrical components, dustproof and waterproof, more suitable for the harsh environment of the mine;
Single stage high efficiency screw air compressor, stable and durable;
14 core dust removal air filter, large filtration area, to meet the needs of 90-115 aperture;
Large maintenance space, easy replacement of wearing parts;

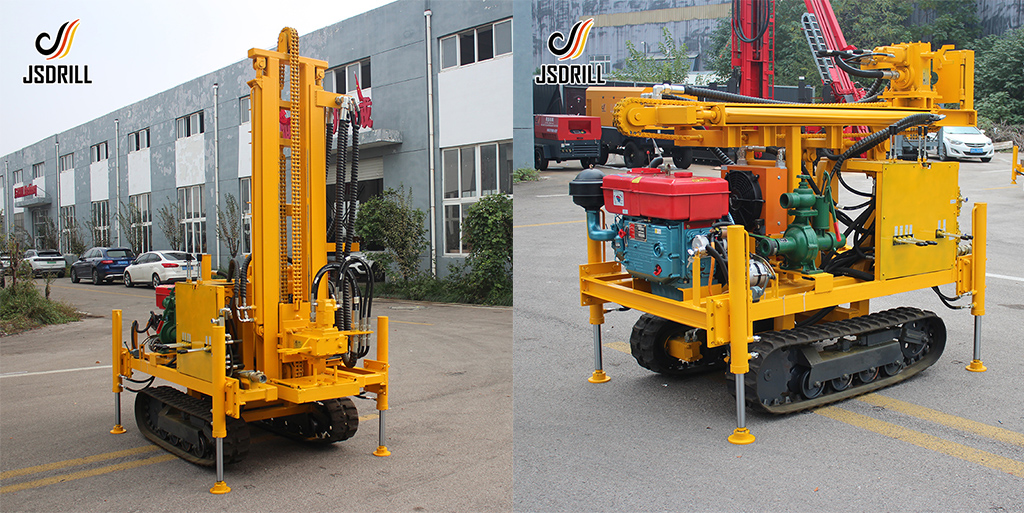

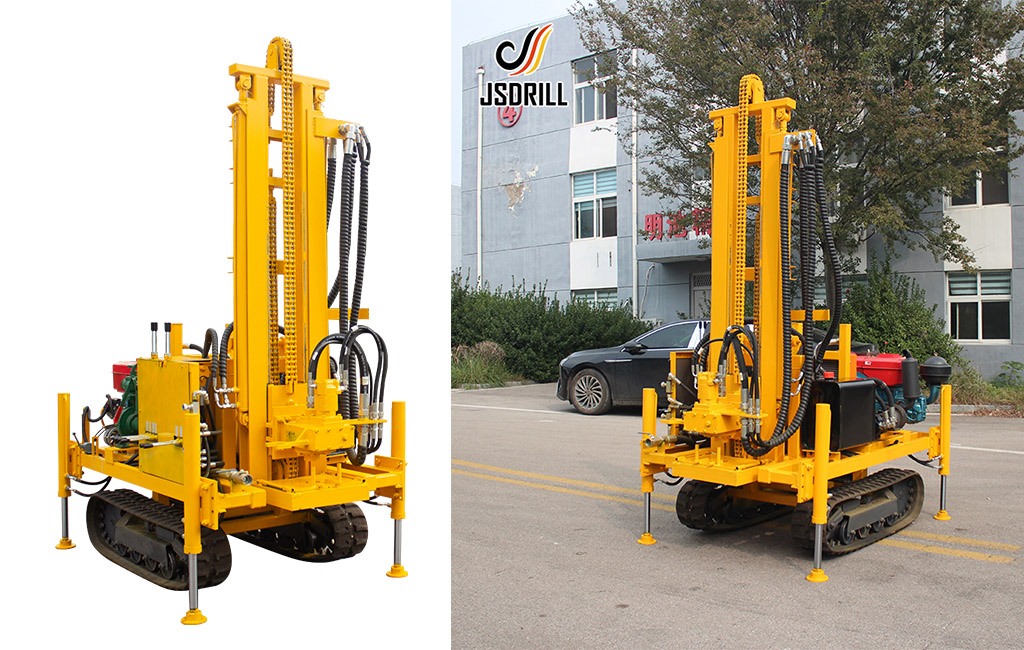

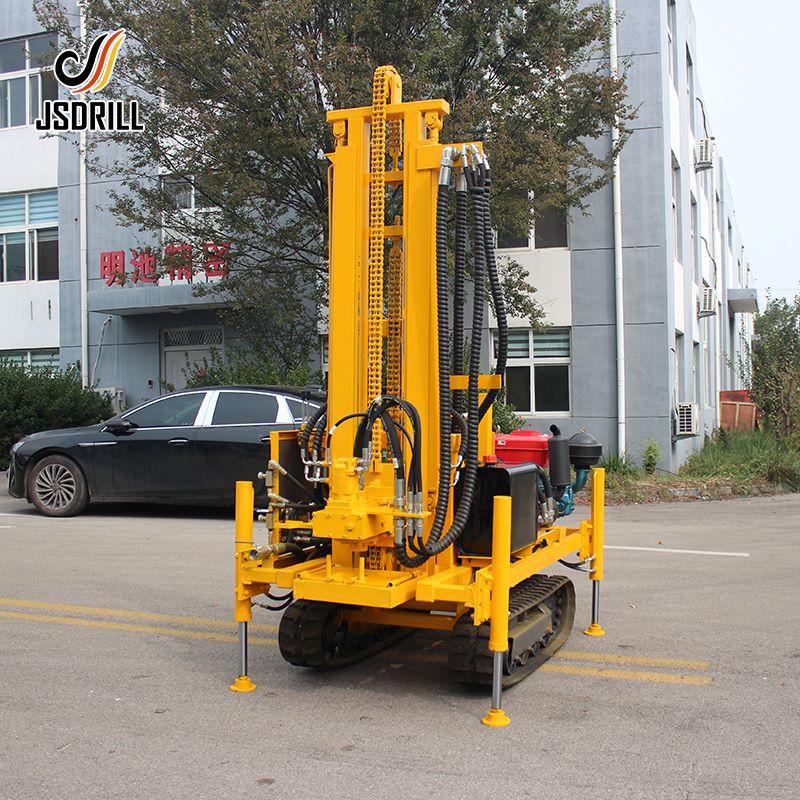

JS trailer-mounted water well drilling rig is a portable, efficient and multi-functional rock drilling equipment, which can be used for rotary or percussion drilling with air, foam or mud according to different geological conditions. It is widely used in industrial and agricultural water conservancy projects. It can drill rock water wells, detection wells and other survey and logging holes. It is especially used in the drilling of geothermal heating holes. It can also meet the needs of engineering foundation reinforcement, loose sand terrain with pipe drilling, foundation stone penetration, etc Various engineering requirements.
The typical depth of a residential well ranges from 100 feet to 800 feet deep. Some wells are even 1,000 feet or deeper. The deeper a well is, generally the better the water quality. The average well depth in your location depends on factors such as:
Geology
Water Quality and Quantity
Water Table
Risk of Contaminants
| Engine | 35P diesel engine |
| Drilling hole diameter | 76/89mm |
| Drilling depth | 200 m |
| Drill pipe length | 2m |
| Rotary speed | 90-160/h |
| Applicable drill pipe | 60-76-89-102 |
| lifting force | 12T |
| Suitable for air compressor | 18-25bar |
| Rig weight | 1.8T |
| Rig size | 2200×1400×2200 |

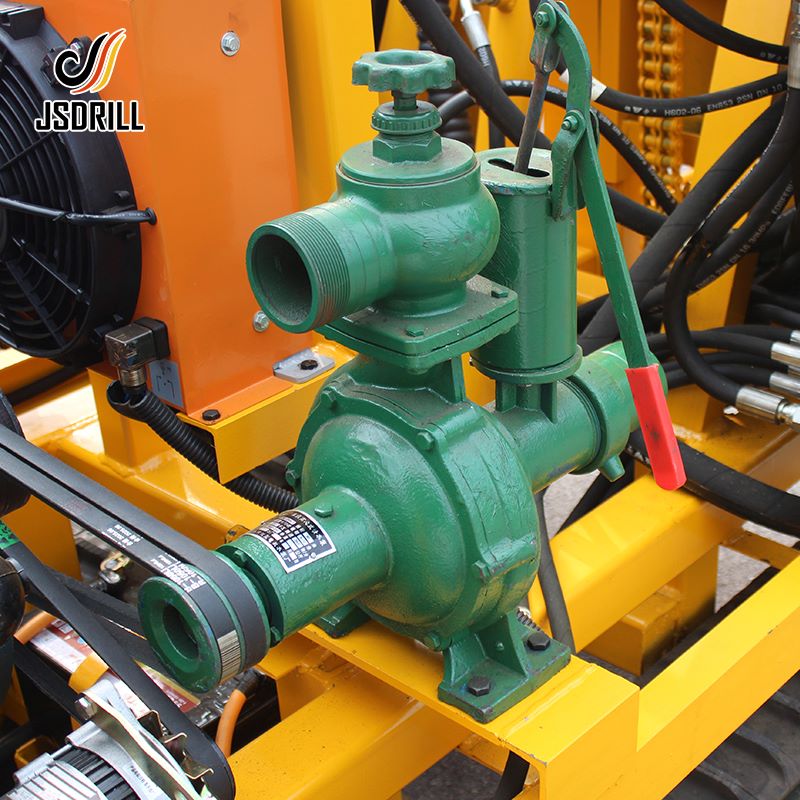

| The machine is matched with 60 water pumps for both water and gas. | |
Suitable for: well drilling reinforcement hole construction
